Colonial

House Compositions

  • Front gable or hipped box with roof pitches from 7:12 to 12:12
  • Two and three bay compositions are common
  • Full one and two story front porches and side wings are common
  • Rectangular or square one or two story volume with a 7:12 to 12:12 roof pitch
  • Front hipped or shed roofed porches with a 3:12 to 5:12 pitch are placed asymmetrically or symmetrically on the front facade as a full-facade element
  • Houses with a narrow gable-end wing with a 7:12 to 12:12 roof pitch facing the street. The width of the gable facing the street is typically 1/3 to 1/2 the width of the main body.
  • Porches often fill out the remaining front beside the L projection

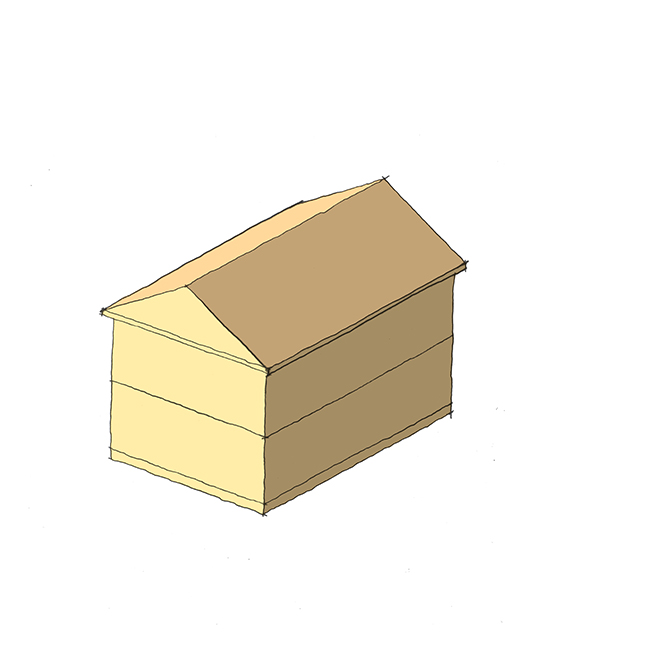

Primary Mass
Original Image
Slide to see Massing Composition
Window & Door Composition
Original Image
Slide to see Design Possibilities
Primary Mass
Original Image
Slide to see Massing Composition

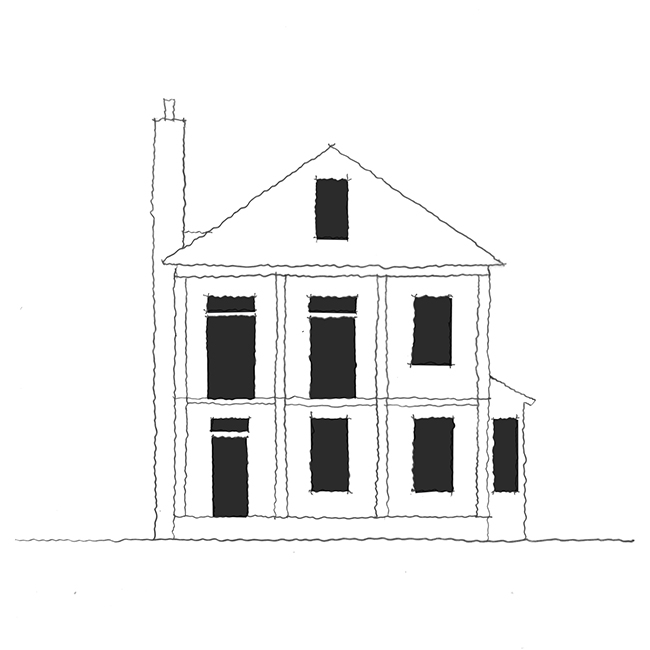

Window & Door Composition
Original Image
Slide to see Design Possibilities
Primary Mass
Original Image
Slide to see Massing Composition
Window & Door Composition
Original Image
Slide to see Design Possibilities

House Details

squiggle line

Eaves & Wall Sections

    Details
  • May have a simple Classical entablature or deep boxed eaves
  • Upper story windows should meet the frieze board
  • Classical entablatures often return at the gable end
  • Simple gable ornaments are permitted with boxed eave conditions
Click on the hotspots
to see the details

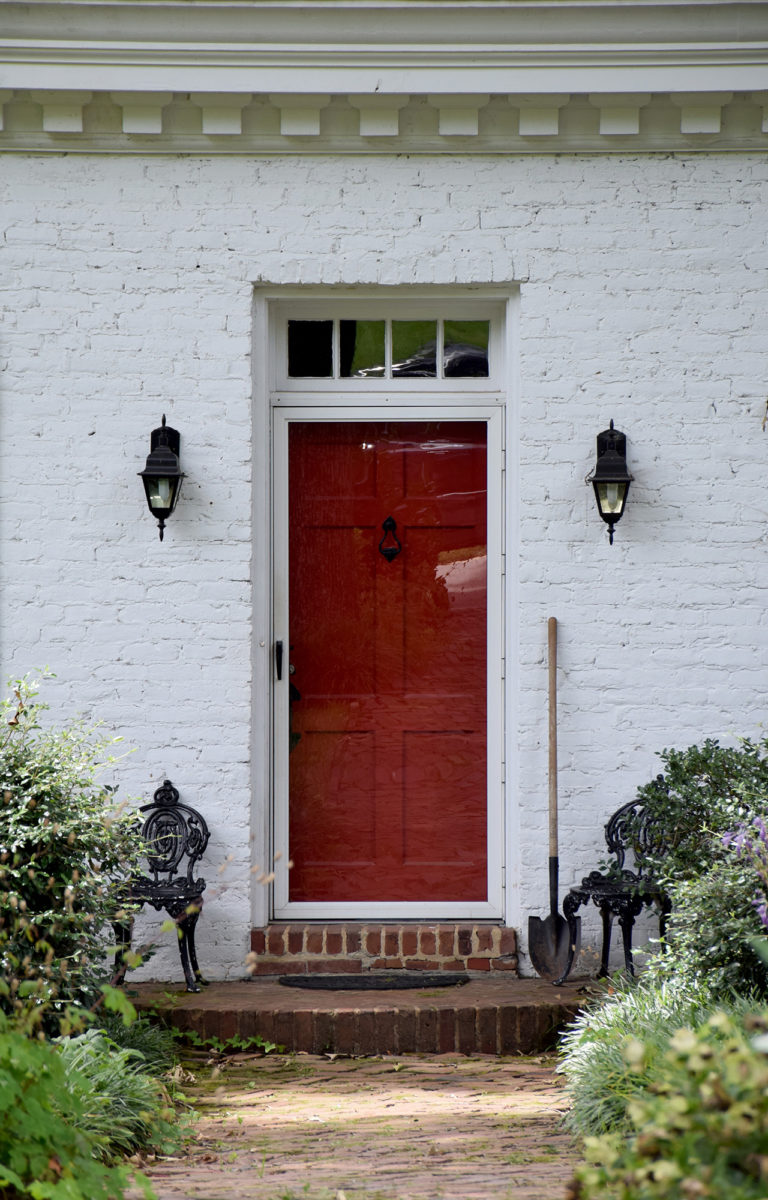

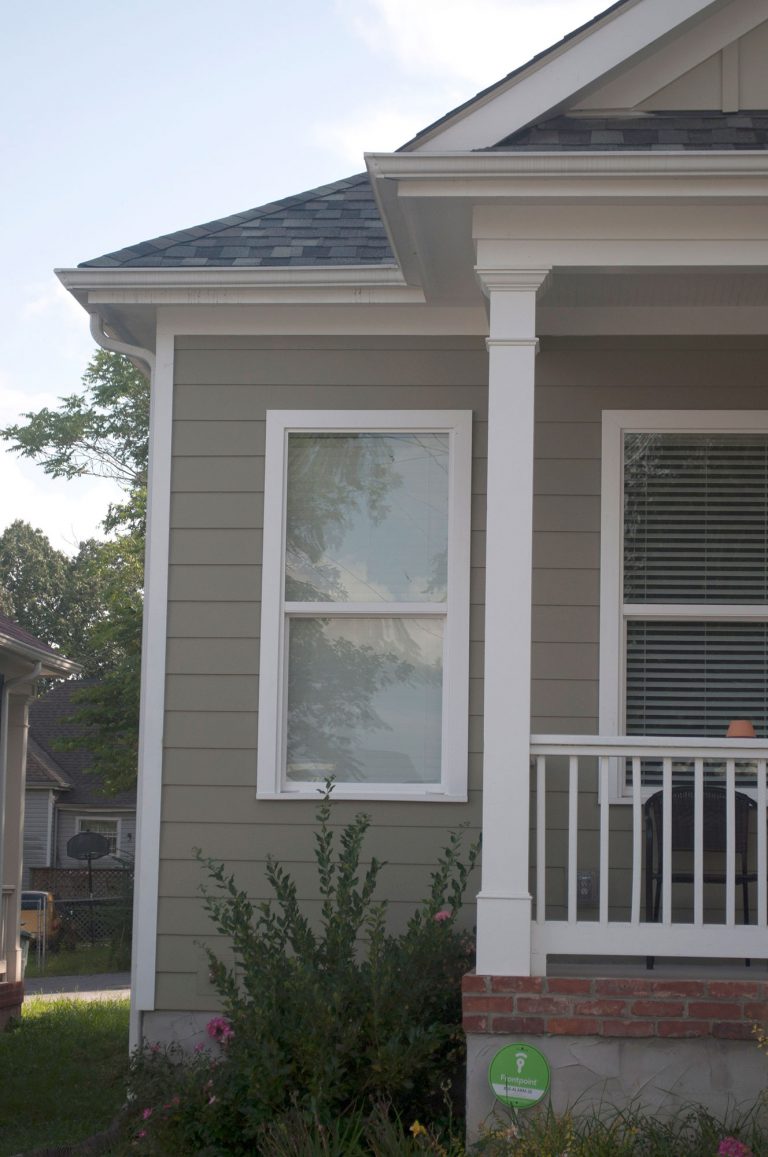

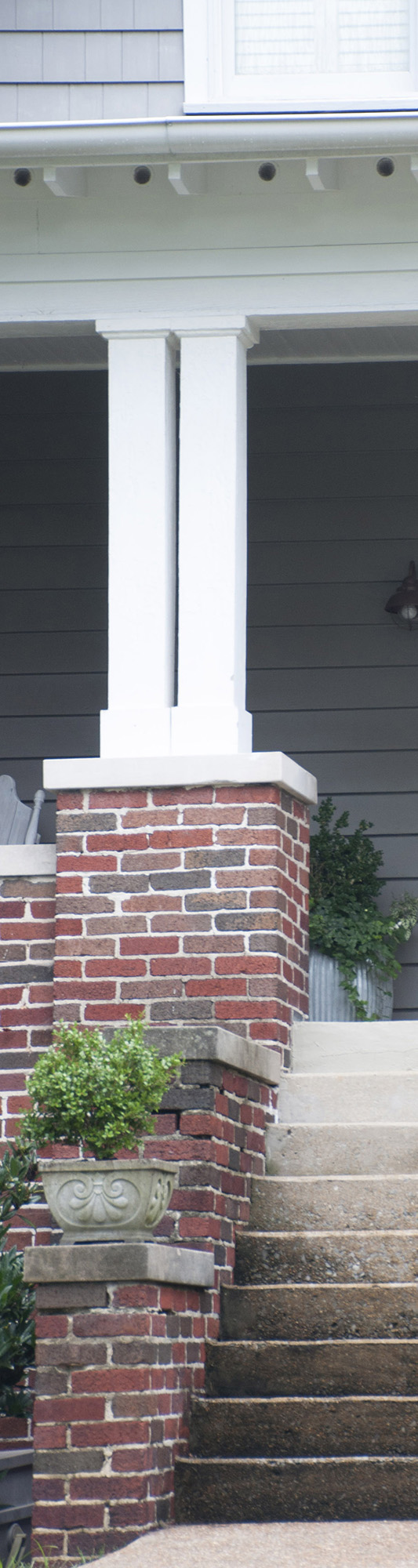

Gallery Photos (Click to Zoom)

Eaves & Wall Sections

    Details
  • May have a simple Classical entablature or deep boxed eaves
  • Upper story windows should meet the frieze board
  • Classical entablatures often return at the gable end
  • Simple gable ornaments are permitted with boxed eave conditions
Click on the hotspots
to see the details

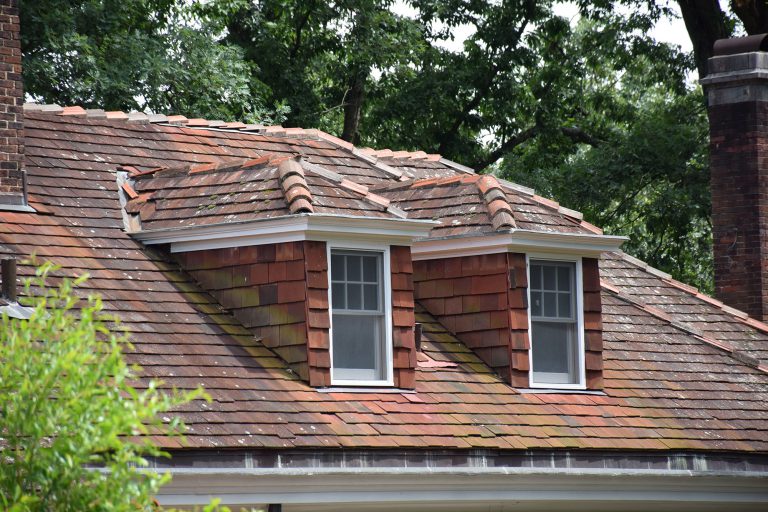

Gallery Photos
(Click to Zoom)
scroll mouse icon

Materials
